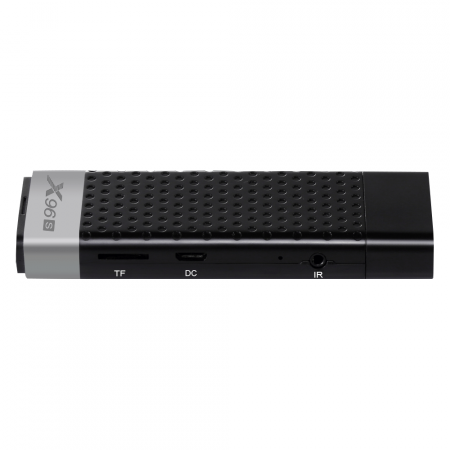

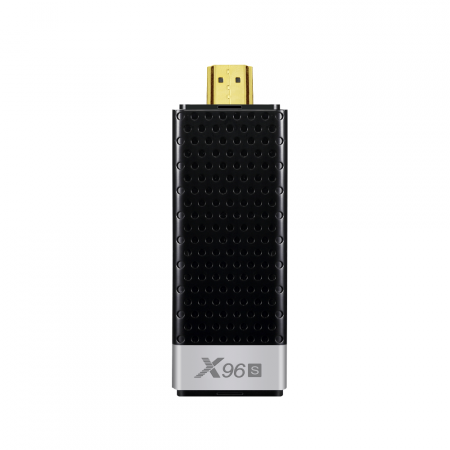

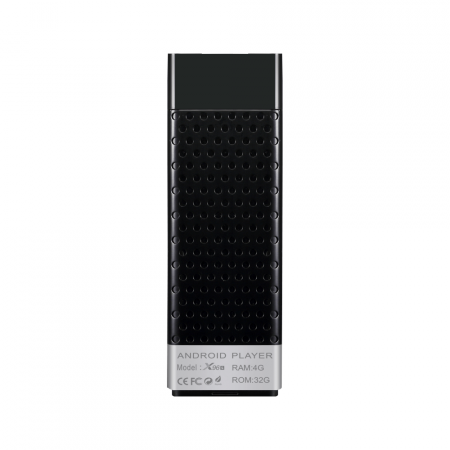

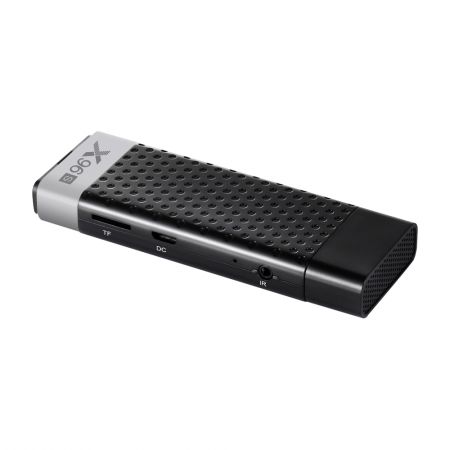

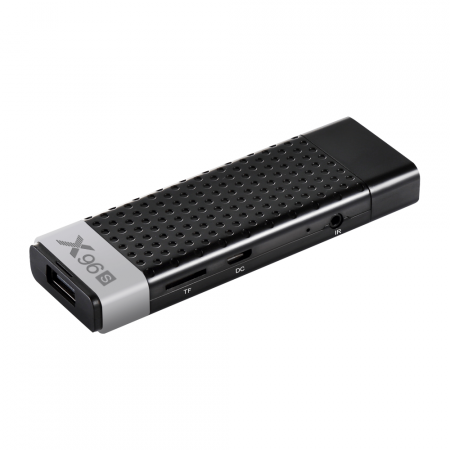

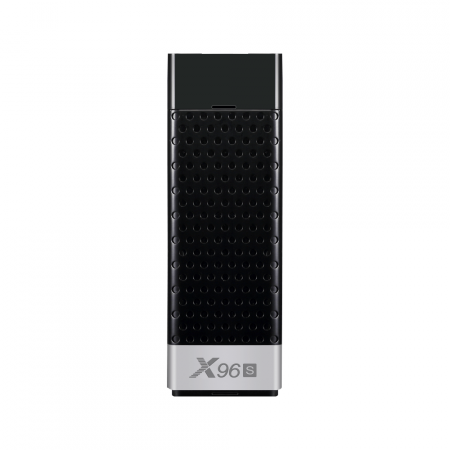

X96S TV Stick Android 8.1 AMLOGIC S905Y2 Quad Core 2GB 16GB
● Android 8.1 operation system
● Amlogic S905Y2 CPU, Quad core, ARM Cortex-A53, 2.0GHz
● ARM Dvalin MP2 GPU
● 2GB / 4GB DDR4 RAM + 16GB / 32GB EMMC ROM
● 2.4GHz + 5.8GHz dual band WiFi
● Support 4K ultra HD image display
● Support H.265 decoding
Description
Android 8.1 TV Stick X96S Amlogic S905Y2 Quad Core X96S 2.4G 5.8G Wifi 1000M /Lan Optional Android Tv Box Chinese Factory

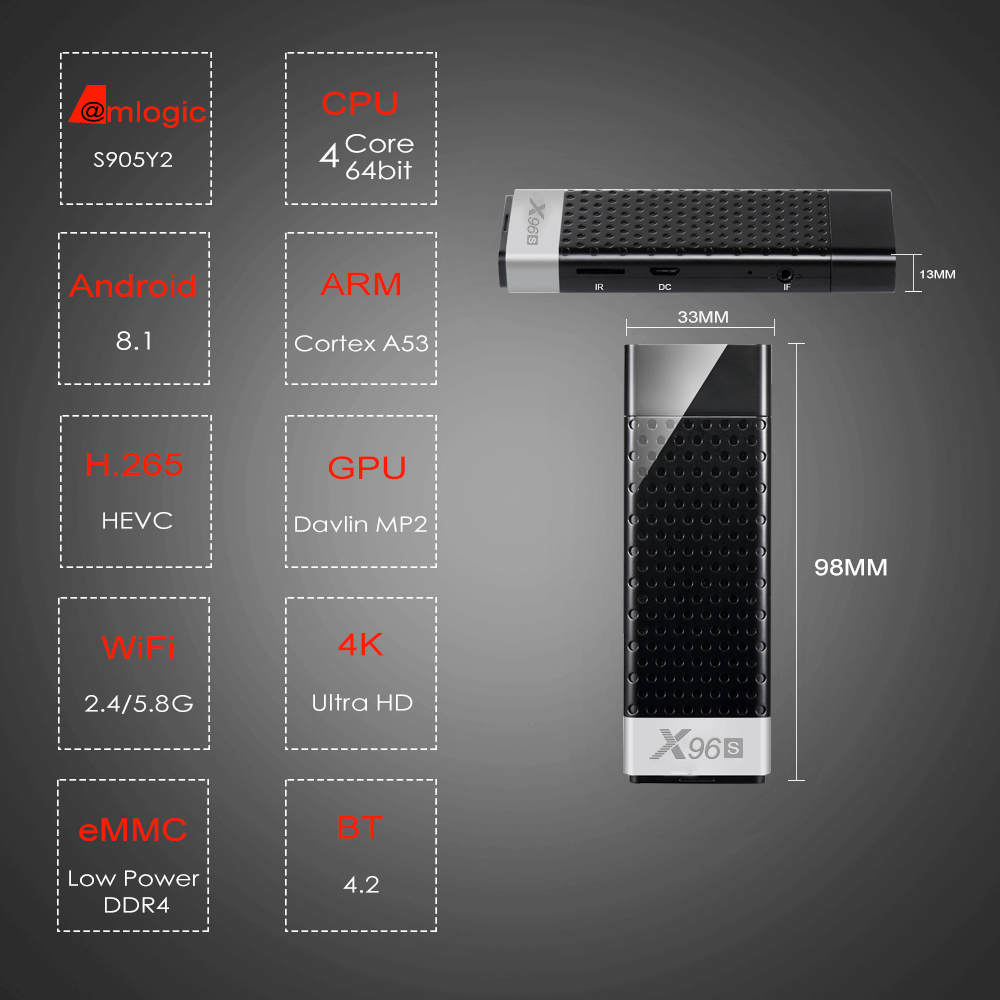

System Configuration
| CPU | Amlogic S905Y2 Quad Core ARM Cortex A53 @2GHz |
| GPU | ARM Dvalin MP2 GPU |
| Memory | LowPower DDR4: 2GB/4GB |
| Flash | eMMC：16GB/32GB |
| WiFi | IEEE 802.11 a/b/g/n/ac ; 2.4G / 5.8G |
| Bluetooth | Bluetooth 4.2 |
| Moudle | Plastic : Black Color |
| Power | DC 5V/1A |
| LED indicator | Working ：Blue |

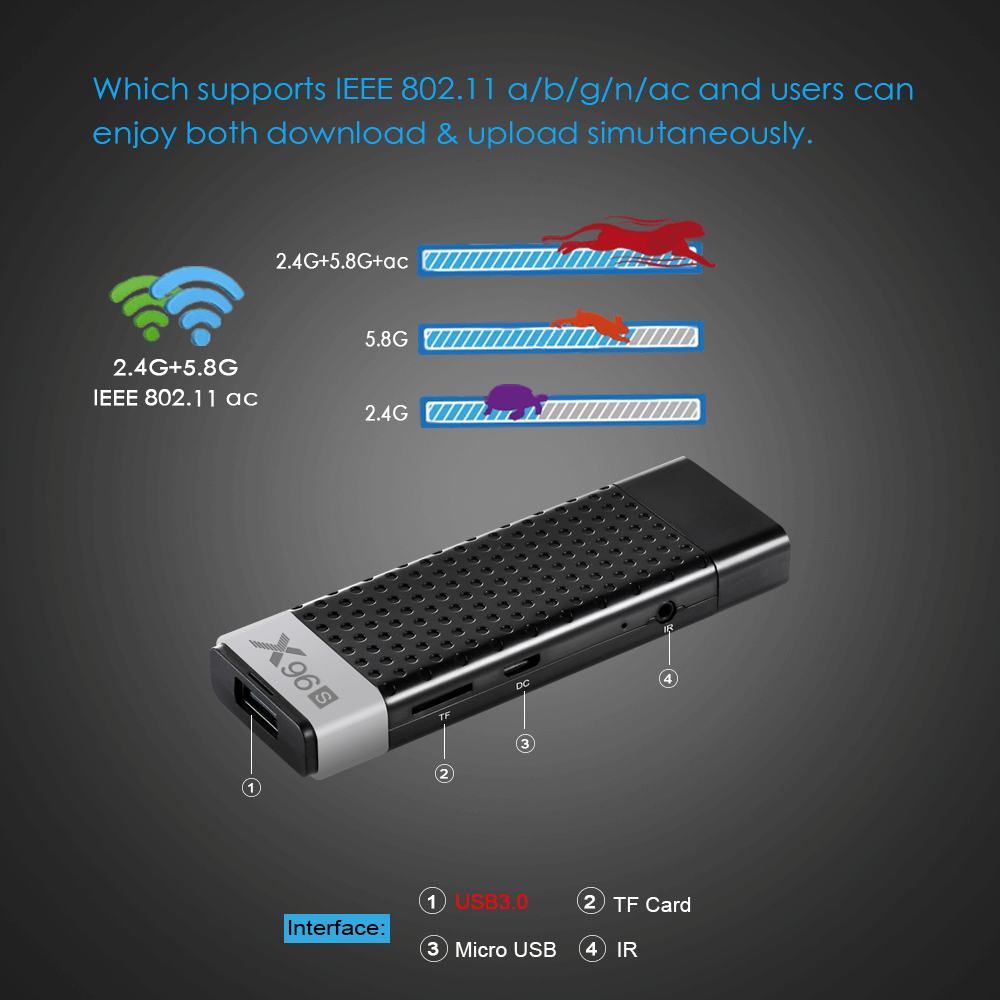

I/O
| 1*HDMI | HDMI 2.1 ,Support HDMI CEC, Dynamic HDR and HDCP 2.2,4Kx2K@75 max resolution output. |
| 1*USB，1*Micro USB | 1* USB 3.0 ;1*Micro USB 2.0 |
| 1*IR | Remote Reciver Connect |
| 1*TF CARD | Support 4GB/8GB/16GB/32GB/64GB |
Software Specifications
| OS | Android 8.1 |
| Video | Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders Support multi-video decoder up to 4Kx2K@60fps+1x1080P@60fps Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding Video/Picture Decoding - VP9 Profile-2 up to 4Kx2K@60fps - H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps - AVS2-P2 Profile up to 4Kx2K@60fps - H.264 AVC HP@L5.1 up to 4Kx2K@30fps - H.264 MVC up to 1080P@60fps - MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) - WMV/VC-1 SP/MP/AP up to 1080P@60fps - AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps - MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) - MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) - RealVideo 8/9/10 up to 1080P@60fps - Multiple language and multiple format sub-title video support - MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) - Supports JPEG thumbnail, scaling, rotation and transition effects - Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats |
| Audio | Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output built-in TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz x32bits x 8ch or 96kHz x 32bits x 32ch and I2S mode up to 384kHz x 32bits x 8ch Digital microphone PDM input with programmable CIC, LPF & HPF, support up to 8 DMICs Built-in stereo audio DAC Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM |
| Image | HD JPEG、BMP、GIF、PNG、TIF |
| Language | English French German Spanish Italian etc multilateral languages |
Appliactions
| Online | Browse all video websites,support Netflix,Hulu,Flixster, Youtube, etc. |
| Apps | Apps download freely form android market、amazon app store etc. |
| Medium | Local Media playback,Support HDD, U Disck ,TF Card . |
| Talk online | Support SKYPE video call ,MSN , facebook ,twitter ,QQ etc |
| Others | Support Email,office suit etc. Support DLNA function Support 2.4G wireless mouse/keyboard |

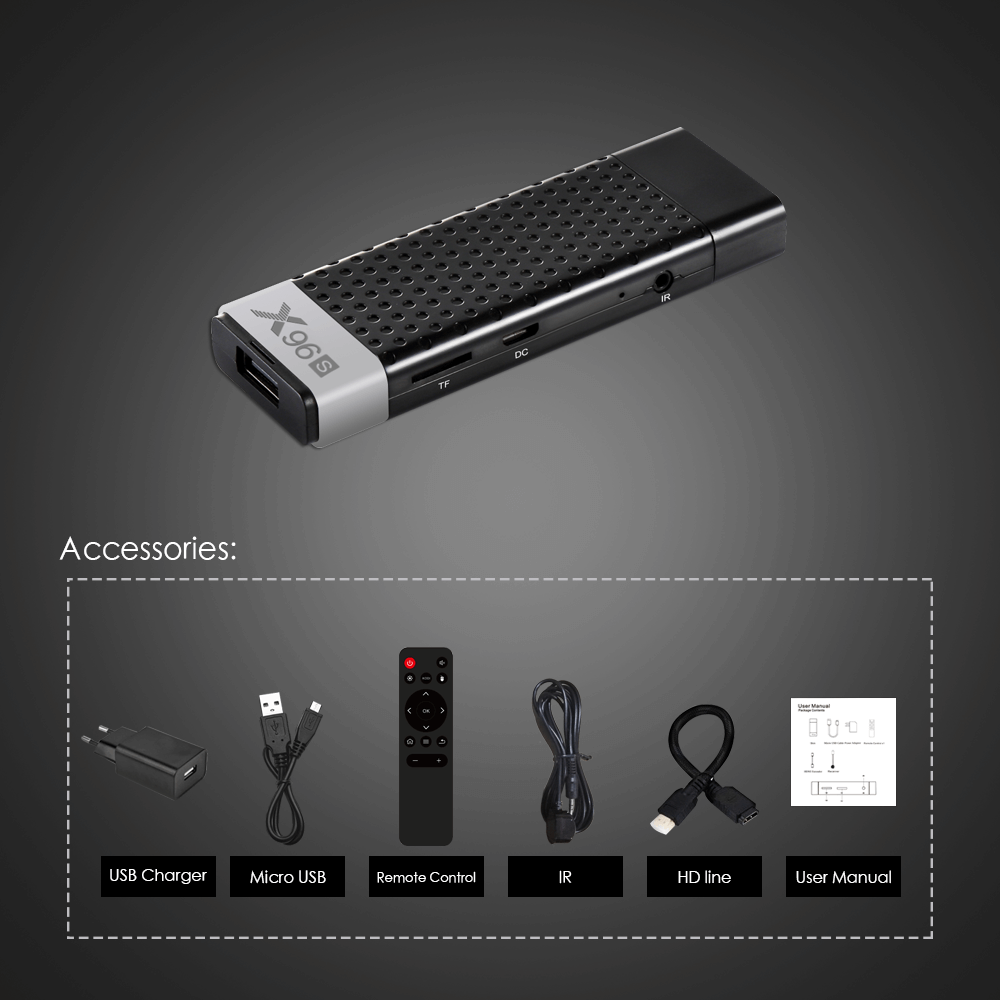

| Accessories | 1、HDMI cable *1 2、IR Line *1 3、IR Remote *1 4、User Manual *1 5、Package box *1 6、Micro USB Line *1 7、USB adapter *1 |
