X96 Max Android TV Box S905X2 Android 8.1 2+16G/4+32G/4+64G
● Android 8.1 operation system
● Amlogic S905X2 CPU, Quad core, ARM Cortex A53, 2GHz
● Mail-G31 GPU
● 2GB / 4GB LPDDR4 + 16GB / 32GB / 64GB eMMC ROM
● 2.4G + 5.8G WiFi
● 1000Mbps Ethernet
Description
X96 Max Amlogic S905X2 2GB+16BG/4GB+32GB/4GB+64GB Android 8.1 quad core HD Android tv box Chinese Factory
Main Features
| CPU | Amlogic S905X2 Quad Core ARM Cortex A53 @2GHz |
| GPU | ARM Dvalin MP2 GPU |
| Memory | LPDDR4: 4GB |
| Flash | eMMC：32GB(Option: 64GB ) |
| WiFi | IEEE 802.11 a/b/g/n/ac ; 2.4G / 5.8G |
| Bluetooth | Bluetooth 4.x +HS; Support Voice Remote |

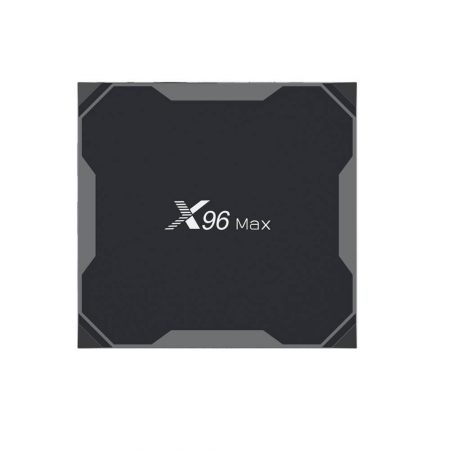

| Moudle | Plastic : Black Color |

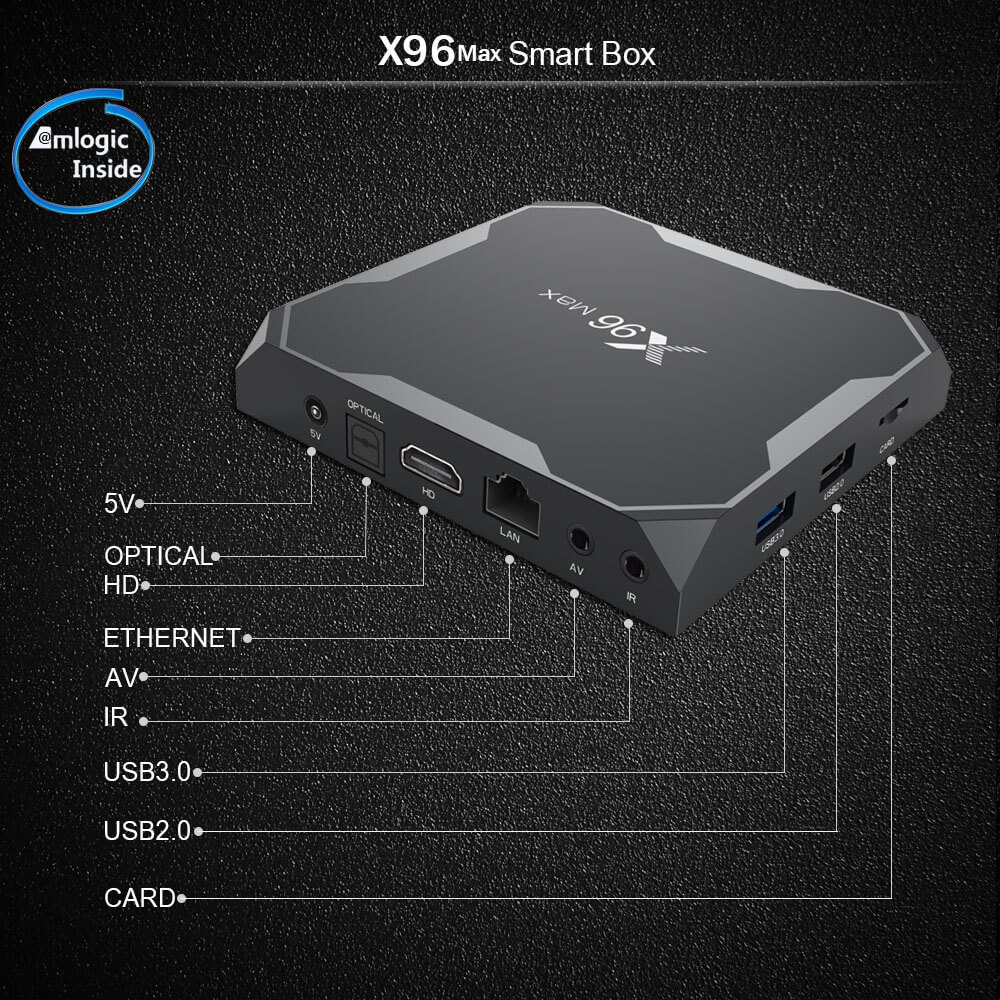

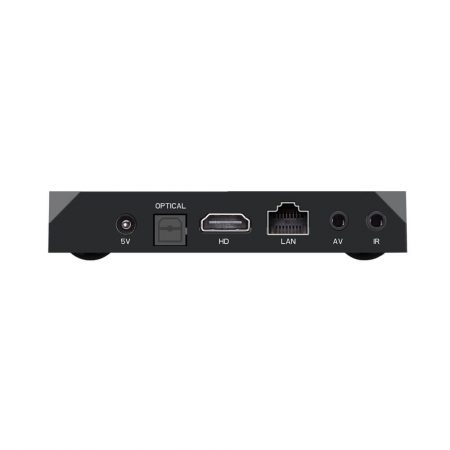

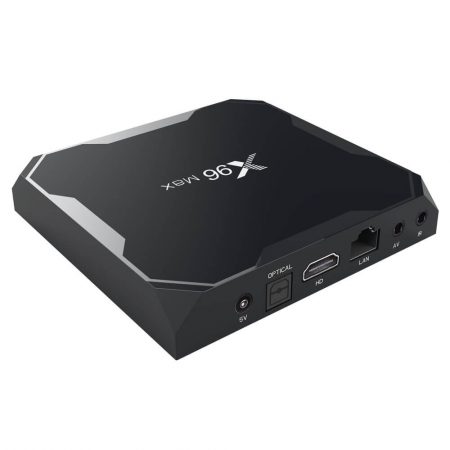

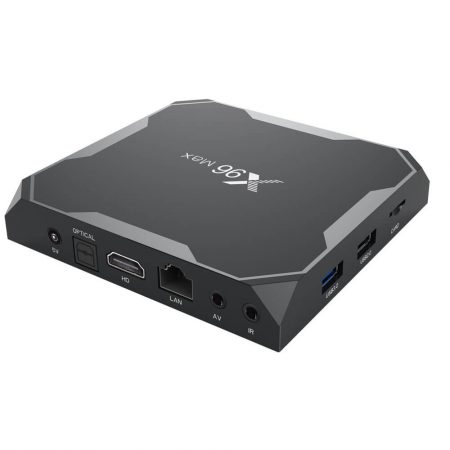

| 1*HDMI | HDMI 2.1 ,Support HDMI CEC, Dynamic HDR and HDCP 2.2,4Kx2K@75 max resolution output. |
| 1*AV OUT | 480i/576i standard definition output |

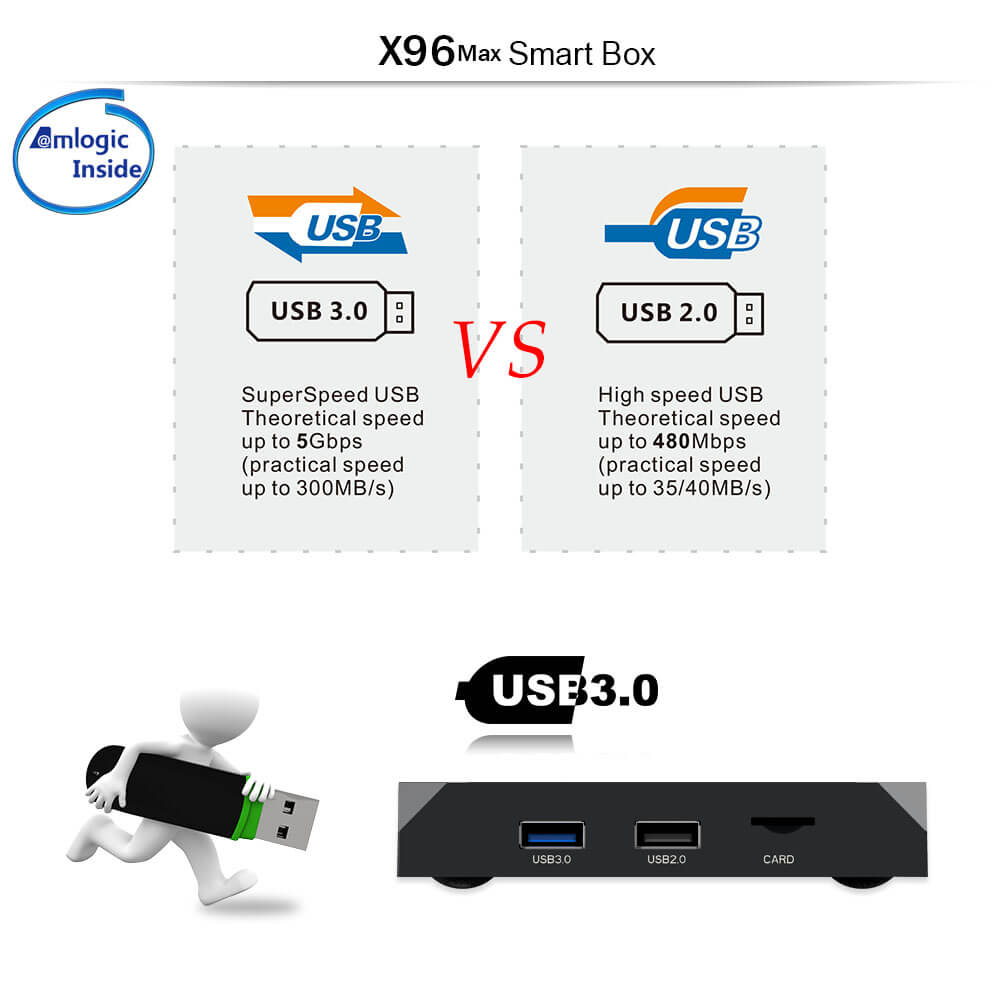

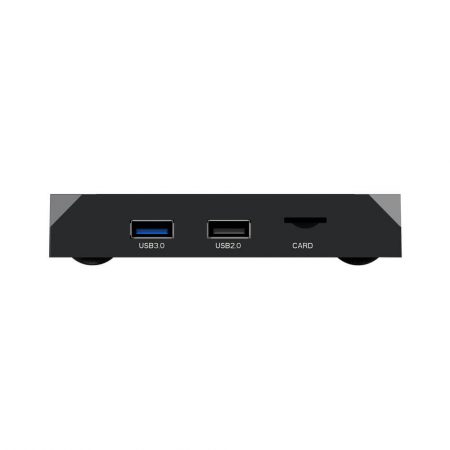

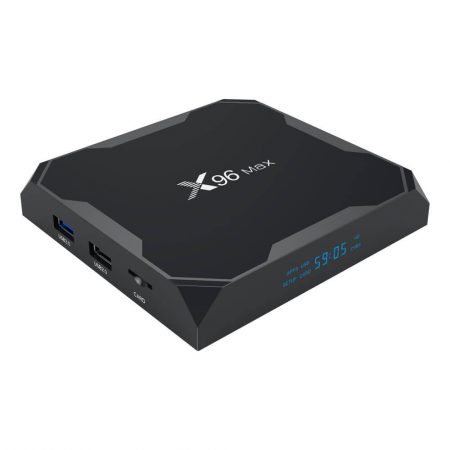

| 2*USB | 1* USB 3.0 ;1*USB 2.0 |
| 1*IR Reciver | Remote Reciver Connect |
| 1*RJ45 | Ethernet Interface;Support 10/100/1000M |
Power Supply Specifications
| Power Supply | DC 5V/2A |
| Power Indicator (LED) | Working ：Blue |
Software Specifications
| OS | Android 8.1 |
| Video | Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders Support multi-video decoder up to 4Kx2K@60fps+1x1080P@60fps Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding Video/Picture Decoding - VP9 Profile-2 up to 4Kx2K@60fps - H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps - AVS2-P2 Profile up to 4Kx2K@60fps - H.264 AVC HP@L5.1 up to 4Kx2K@30fps - H.264 MVC up to 1080P@60fps - MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) - WMV/VC-1 SP/MP/AP up to 1080P@60fps - AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps - MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) - MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) - RealVideo 8/9/10 up to 1080P@60fps - Multiple language and multiple format sub-title video support - MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) - Supports JPEG thumbnail, scaling, rotation and transition effects - Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats |
| Audio | Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output built-in TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz x32bits x 8ch or 96kHz x 32bits x 32ch and I2S mode up to 384kHz x 32bits x 8ch Digital microphone PDM input with programmable CIC, LPF & HPF, support up to 8 DMICs Built-in stereo audio DAC Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM |
| Image | HD JPEG、BMP、GIF、PNG、TIF |
| Language | English French German Spanish Italian etc multilateral languages |
Appliactions
| Online | Browse all video websites,support Netflix,Hulu,Flixster, Youtube, etc. |
| Apps | Apps download freely form android market、amazon app store etc. |
| Medium | Local Media playback,Support HDD, U Disck ,TF Card . |
| Talk online | Support SKYPE video call ,MSN , facebook ,twitter ,QQ etc |
| Others | Support Email,office suit etc. Support DLNA function Support 2.4G wireless mouse/keyboard |
