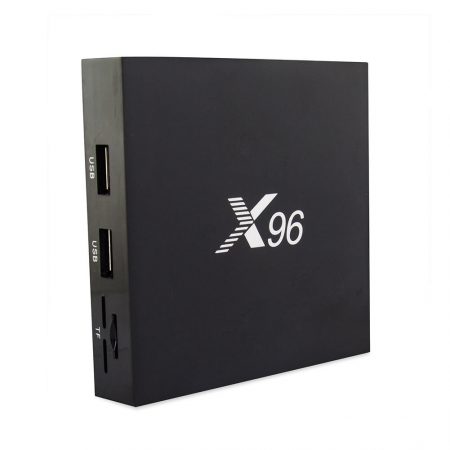

X96 TV Box Android 6.0 Amlogic S905X 2G+16G
● With Android 6.0 system, we will have high-speed feedback and smooth response.
● The processor in this chip is an RK3229 with a maximum clock speed of up to 2.0GHz. Use the Mali-400MP as GPU.
● Support H.265 video code, enjoy the high-resolution video even at a low-internet-speed environment.

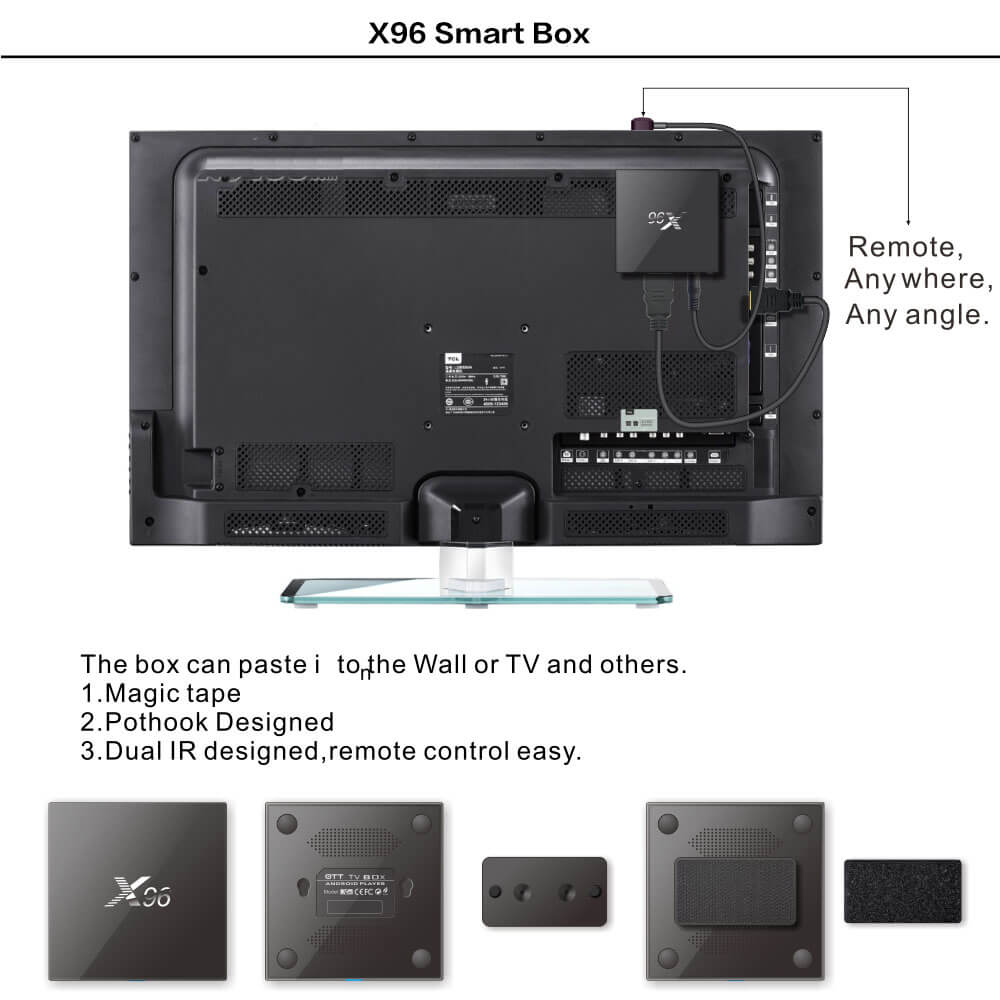

● HDMI 2.0 connector: you can go directly to let your TV and X96 TV Box are connected through an HDMI cable and set up your home cinema for the best 4K x 2K Full HD multimedia experience.
● It integrated the latest media player software, with full functions of the multimedia entertainment.
● It has a memory of 2GB DDR3 RAM, with 16GB eMMC ROM, easily enjoy games and videos.
● Support 5.1 surround sound output, capture your ears with actual listening feelings.
Description
Android 6.0 TV box X96 Amlogic S905X with 2.4G WiFi TV BOX X96 from Chinese factory

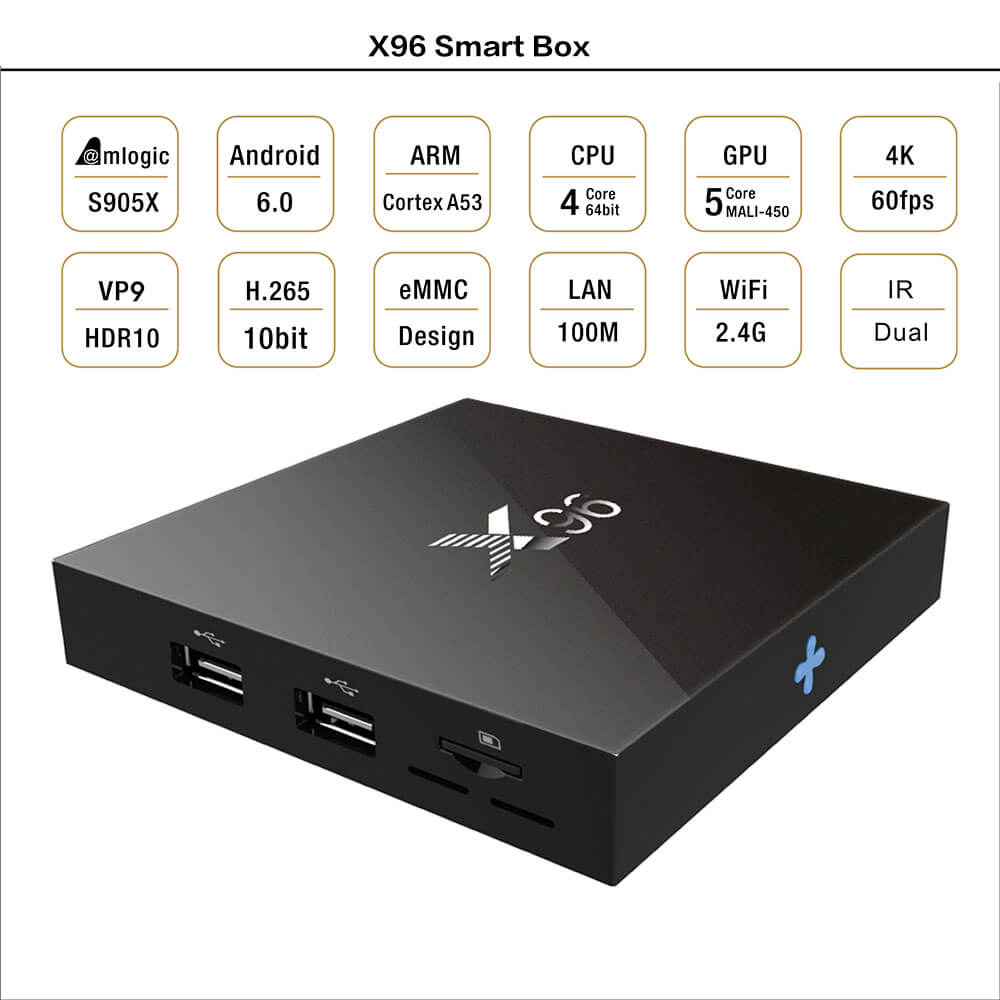

Hardware Specifications

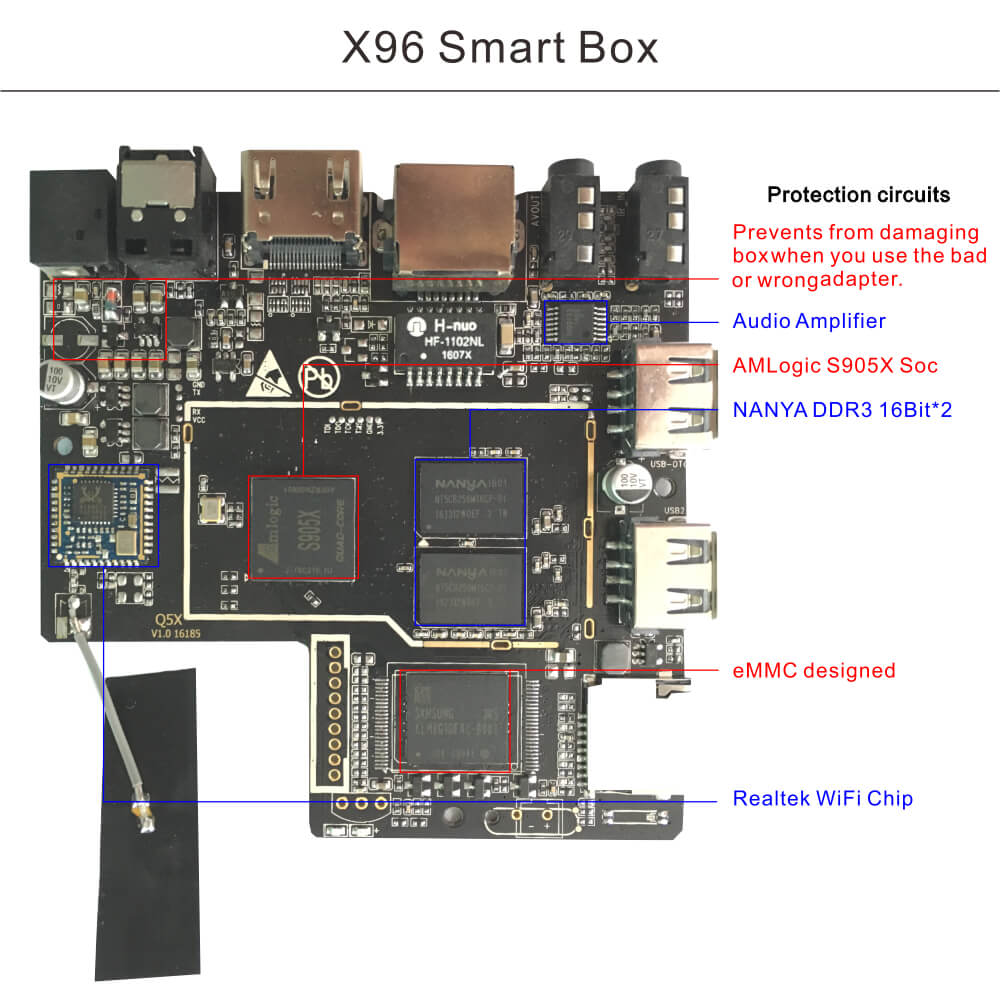

| CPU | Amlogic S905X Quad Core ARM Cortex A53 @2GHz |
| GPU | Penta-core Mali-450MP GPU @ 750MHz, |

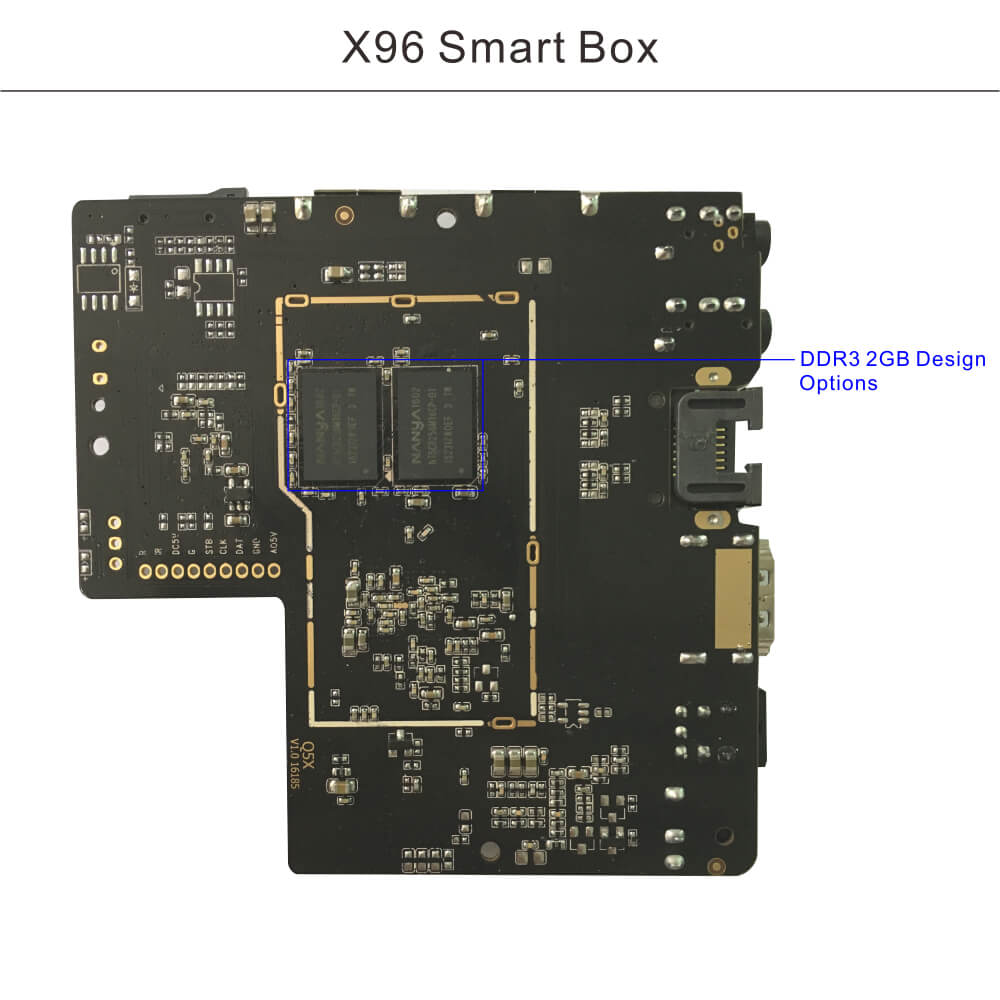

| Memory | DDR3：1GB (Option: 2GB) |
| Flash | eMMC：8GB (Option:16GB ) |
| WiFi | IEEE 802.11 b/g/n |
| Moudle | Plastic : Black Color |

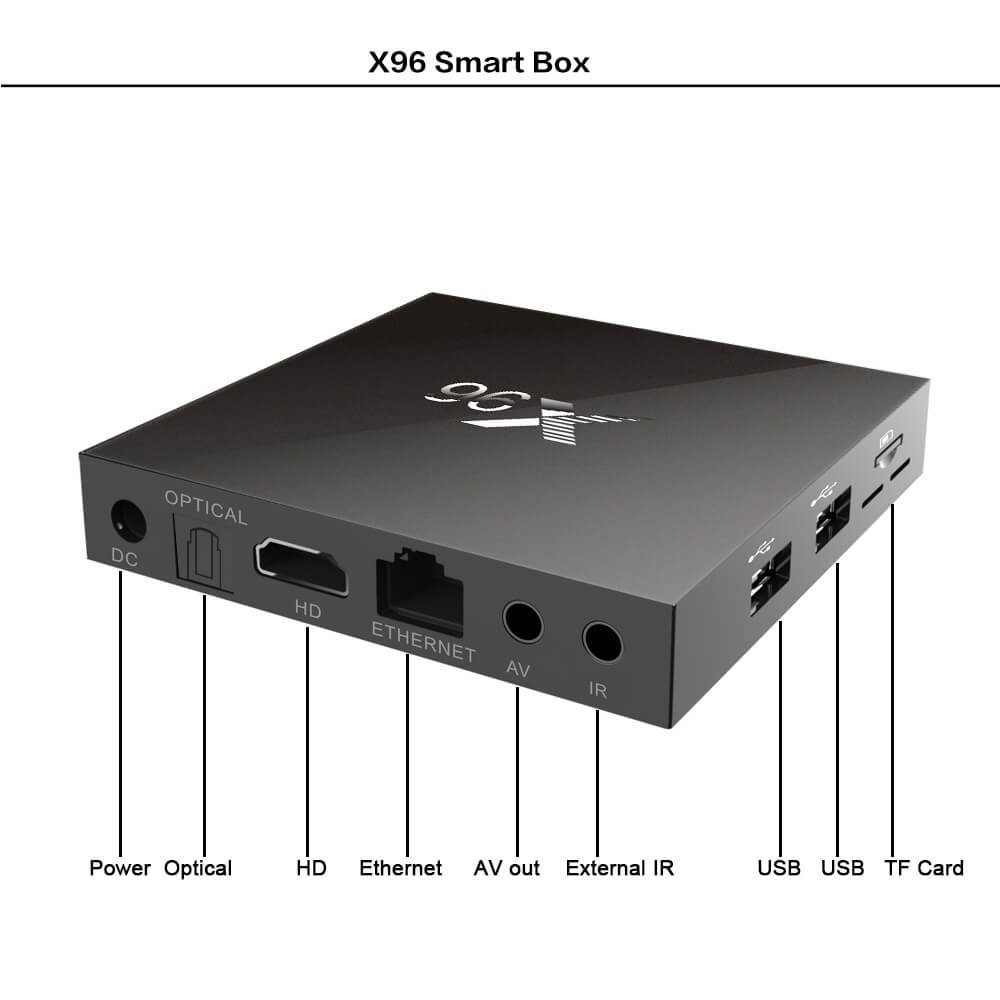

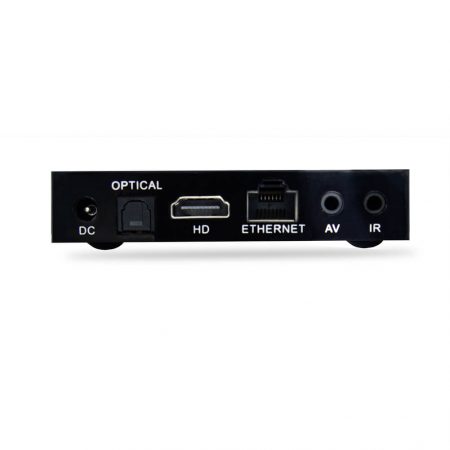

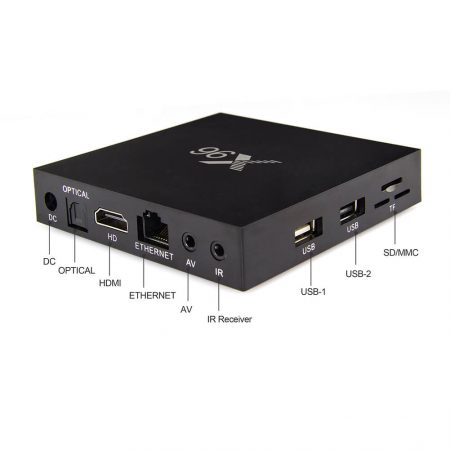

I/O
| 1*HDMI | 4K*2K UHD Output, HDMI 2.0A |
| 1*AV OUT | 480i/576i standard definition output |

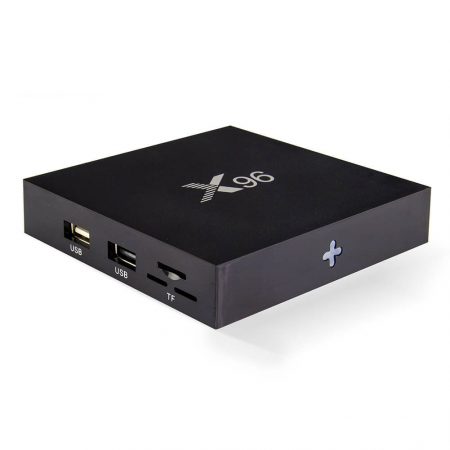

| 2*USB | 1* USB Host Port ,1*USB Device |
| 1*OPTICAL | Digital Audio output |
| 1*RJ45 | Ethernet Interface |
| 1*TF CARD | Support 4GB/8GB/16GB/32GB/64GB |
Power Supply
| Power supply | DC 5V/2A |
| LED indicator | Working ：Blue; Standby：Red |
Software Specifications
| OS | Android 6.0 Marshmallow |
| Video | * AMLogic video Engine(AVE)with dedicated hardware decoders and encoders * Supports multiple "secured"video decoding sessions and simultaneous decoding and encoding * Video/Picture Decoding -VP9 Profile-2 up to 4K*2K@60fps -H.265 HEVC MP-10@L5.1 up to 4K*2K@60fps -H.264 AVC HP@L5.1 up to 4K*2K@30fps -H.264 MVC up to 1080P@60fps -MPEG-4 ASP@L5 up to 1080P@60fps(ISO-14496) -WMV/VC-1 SP/MP/AP up to 1080P@60fps -AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps -MPEG2 MP/HL up to 1080P@60fps -MPEG1 MP/HL up to 1080P@60fps -RealVideo 8/9/10 up to 1080P@60fps * Low latency 1080P H.264 60fps encoder * HDR10 and HLG HDR Video Processing * Supports *.mkv,*.mpg,*.wmv,*.mpeg,*.dat,*.avi,*.mov,*.iso,*.mp4,*.rm and *.jpg file formats * Video/Picture Encoding -Independent JPEG and H.264 encoder with configurable performance/bit-rate -JPEG image encoding -H.264 video encoding up to 1080P@60fps with low latency |
| Audio | Low power MediaCPU with DSP audio processing Supports MP3,AAC,WMA,RM,FLAC,Ogg and programmable with 7.1/5.1 down-mixing Built-in stereo audio DAC Built-in SPDIF/IEC958 and PCM serial digital audio input/output Supports concurrent dual audio stereo channel output with combination of analog+PCMo or I2S+PCM |
| Image | HD JPEG、BMP、GIF、PNG、TIF |
| Language | English French German Spanish Italian etc multilateral languages |
Appliactions
| Online | Browse all video websites,support Netflix,Hulu,Flixster, Youtube, etc. |
| Apps | Apps download freely form android market、amazon app store etc. |
| Medium | Local Media playback,Support HDD, U Disck ,SD/MMC Card . |
| Talk online | Support SKYPE video call ,MSN , facebook ,twitter ,QQ etc |
| Others | Support Email,office suit etc. Support DLNA function Support 2.4G wireless mouse/keyboard |
