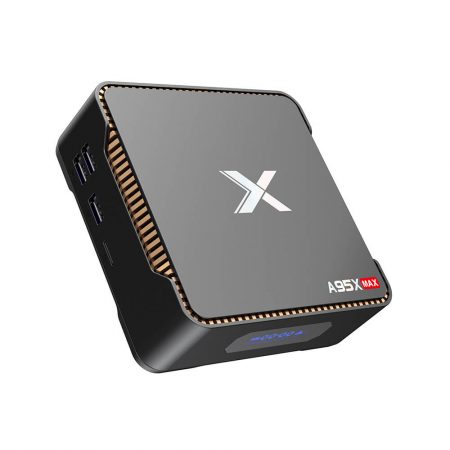

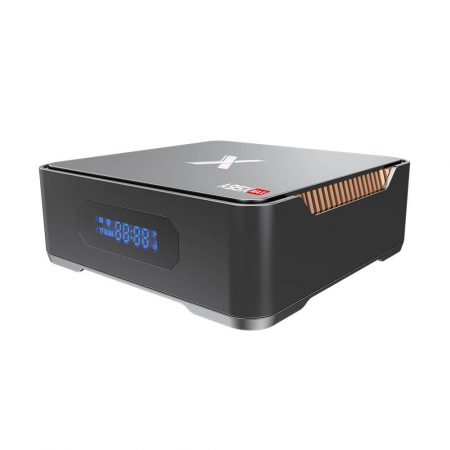

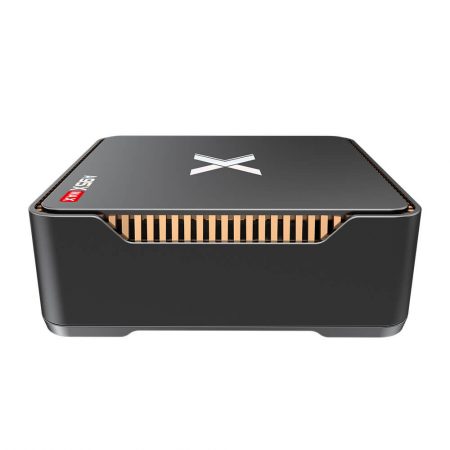

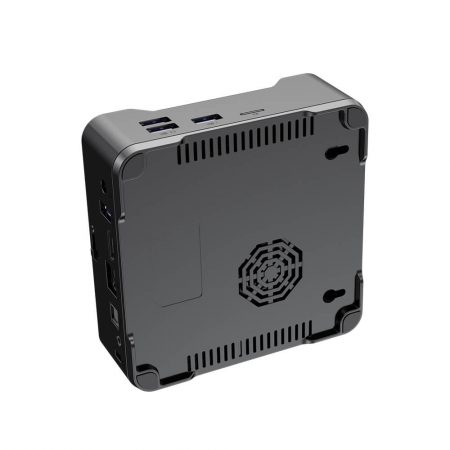

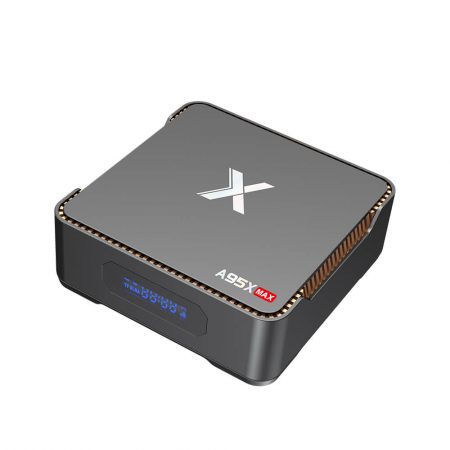

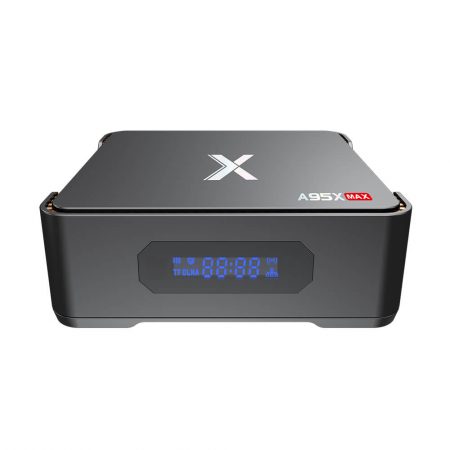

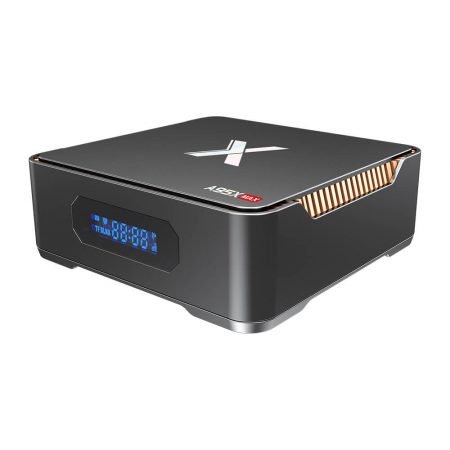

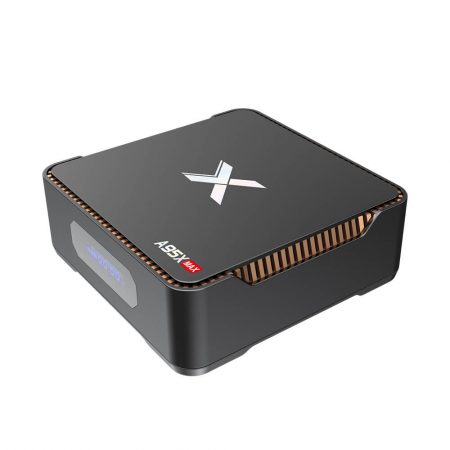

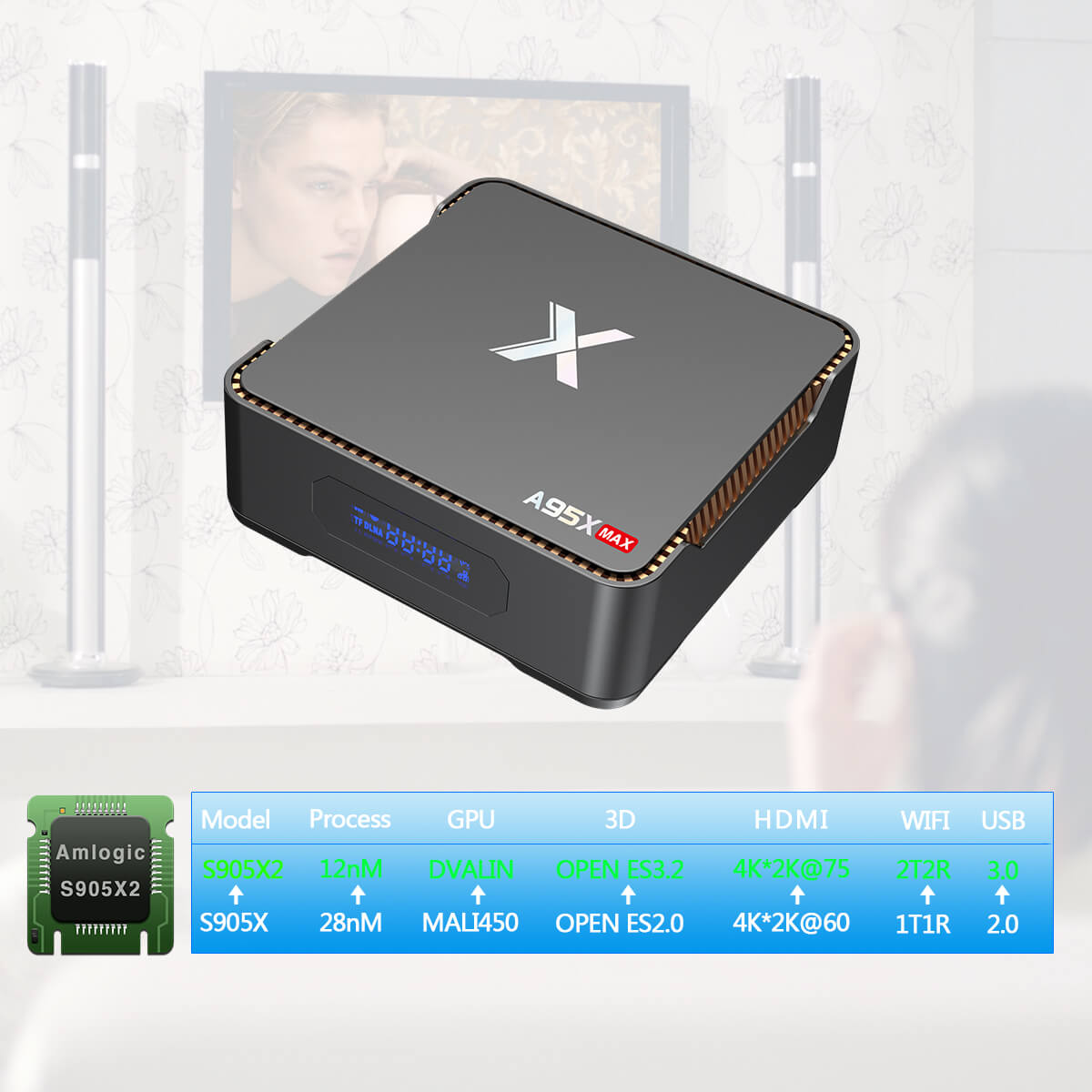

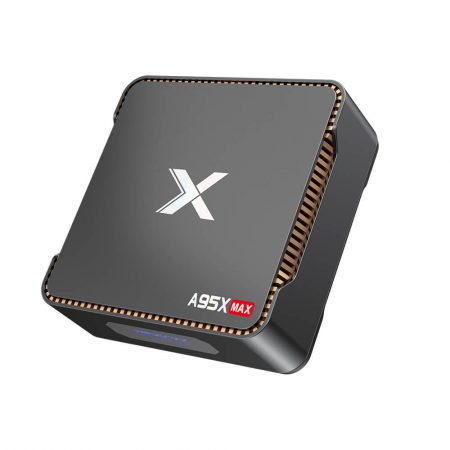

A95X Max Android TV Box 4G+32G/4G+64G
● Android 8.1 operation system

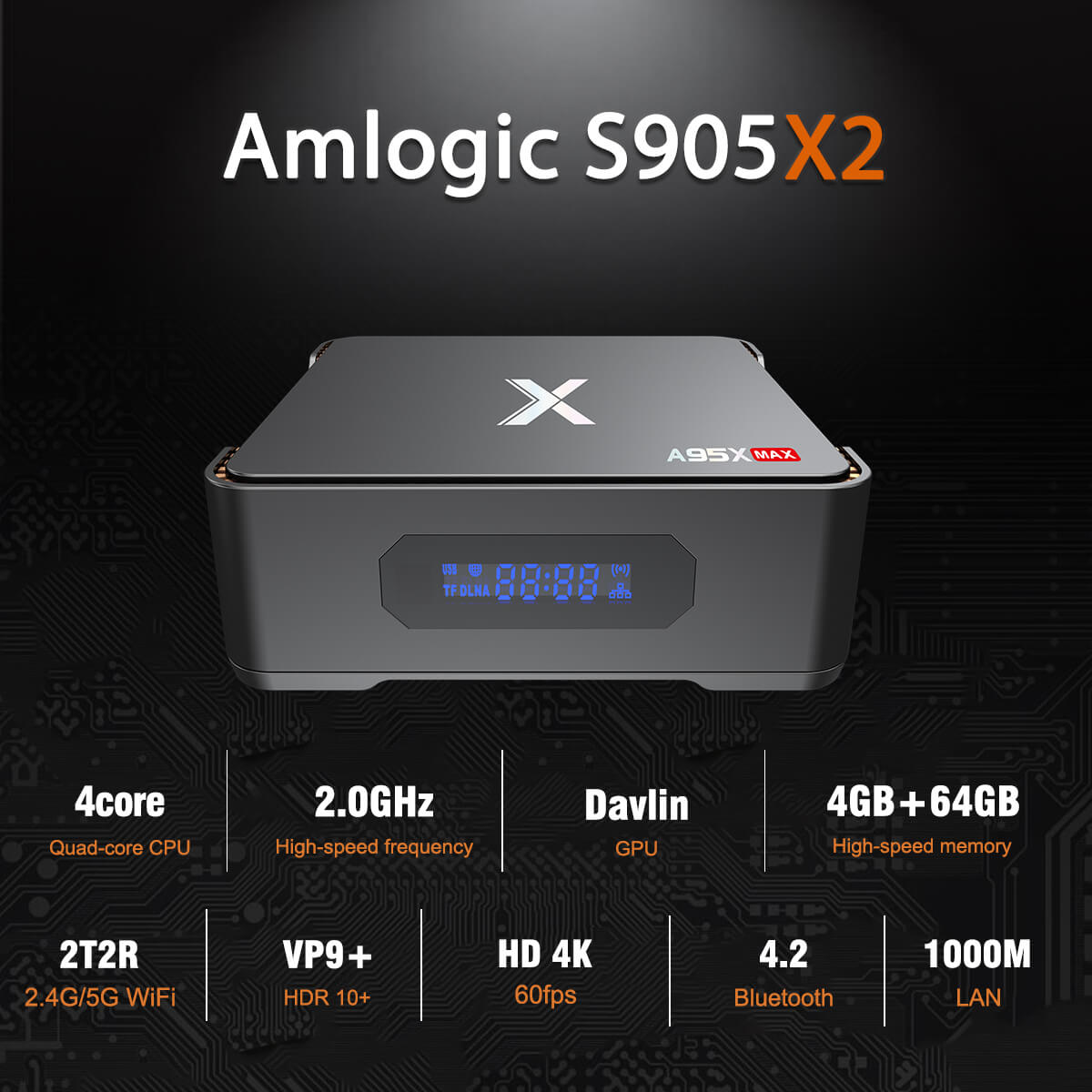

● Amlogic S905X2 CPU, Quad core, ARM Cortex-A53, 1.7GHz
● ARM Dvalin MP2 ( Mali G31 MP2 ) GPU
● 2GB / 4GB DDR3L RAM + 32GB / 64GB EMMC ROM
● 2.4GHz + 5GHz dual band WiFi
● 1000Mbps Ethernet
● Support 4K ultra HD image display
● Support H.265 decoding
Description
A95X MAX Amlogic S905X2 Quad Core 4GB RAM+32GB ROM/4GB RAM+64GB ROM SATA Port Android 8.1 TV Box Chinese Factory
Hardware Configuration
| CPU | Amlogic S905X2 Quad-core Cortex-A53 12nm |
| GPU | ARM Dvalin MP2 GPU support OpenGL ES3.2/OpenCL2.0 |
| RAM | 4GB |
| ROM | 32GB/64GB(Option) |
Network Connections
| WIFI | 2T2R IEEE 802.11 a/b/g/n/ac（2.4G&5G） Support 20MHz/40MHz/80MHz 300Mbps in 802.11n,876Mbps in 802.11 ac |
| Bluetooth | V4.2 Support 4.2+HS,BLE,ANT and compatible with v1.2,2.X |
| Ethernet Network | IEEE 802.3 10/100M/1000M |

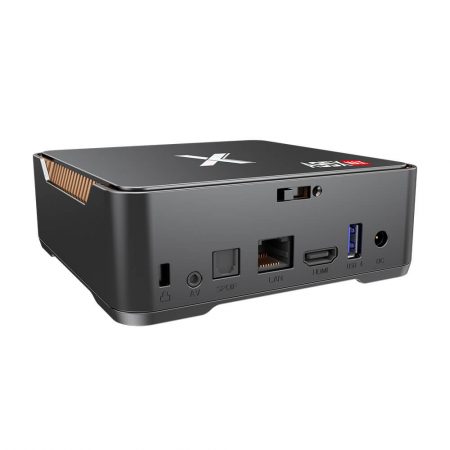

Interface Configuration
| Memory card socket | SDHC/SDXC Support 4GB/8GB/16GB/32GB/64GB |

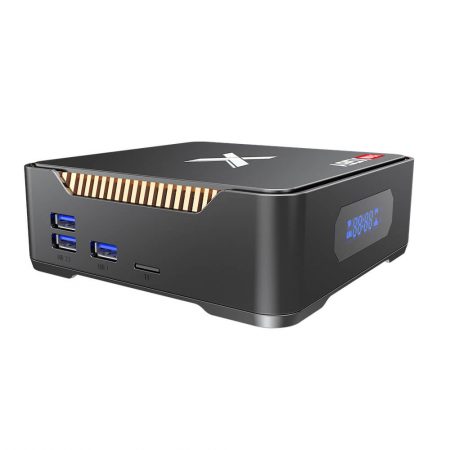

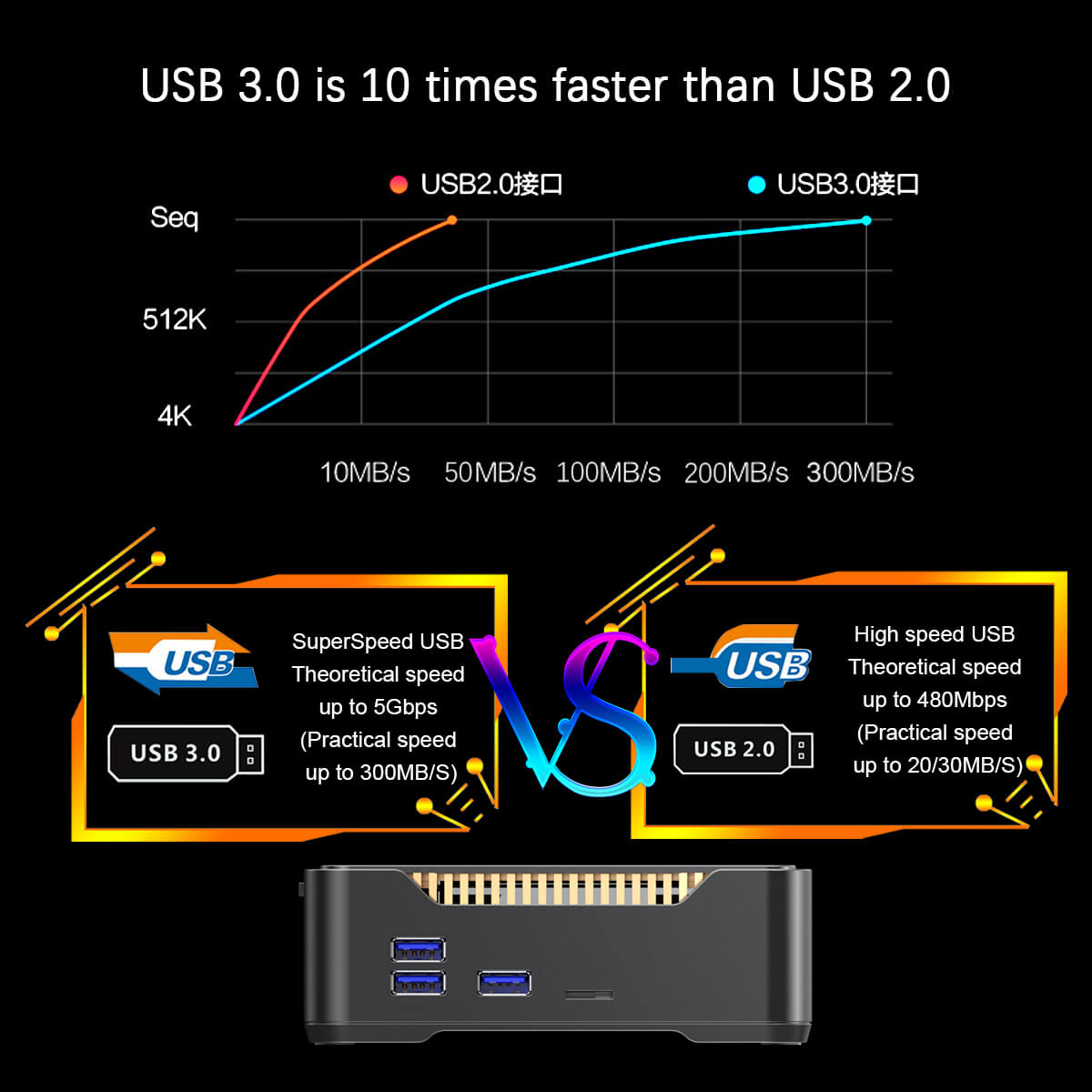

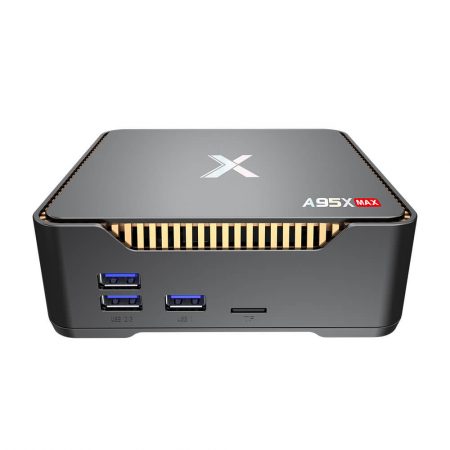

| USB interface | USB2.0x1 USB3.0x3 |
| AV jack | ∮3.5mm jack CVBS 480i/576i standard definition output |
| DC connector | ∮5.5mm jack |
| HDMI interface | HDMI 2.1 ,4Kx2K@75 max resolution output. Support transmitter with 3D,, Dynamic HDR ,CEC and HDCP 2.2 |

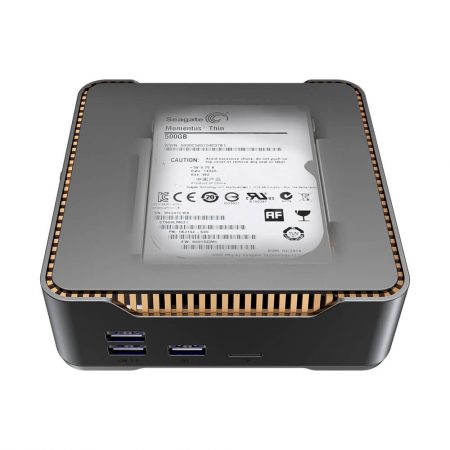

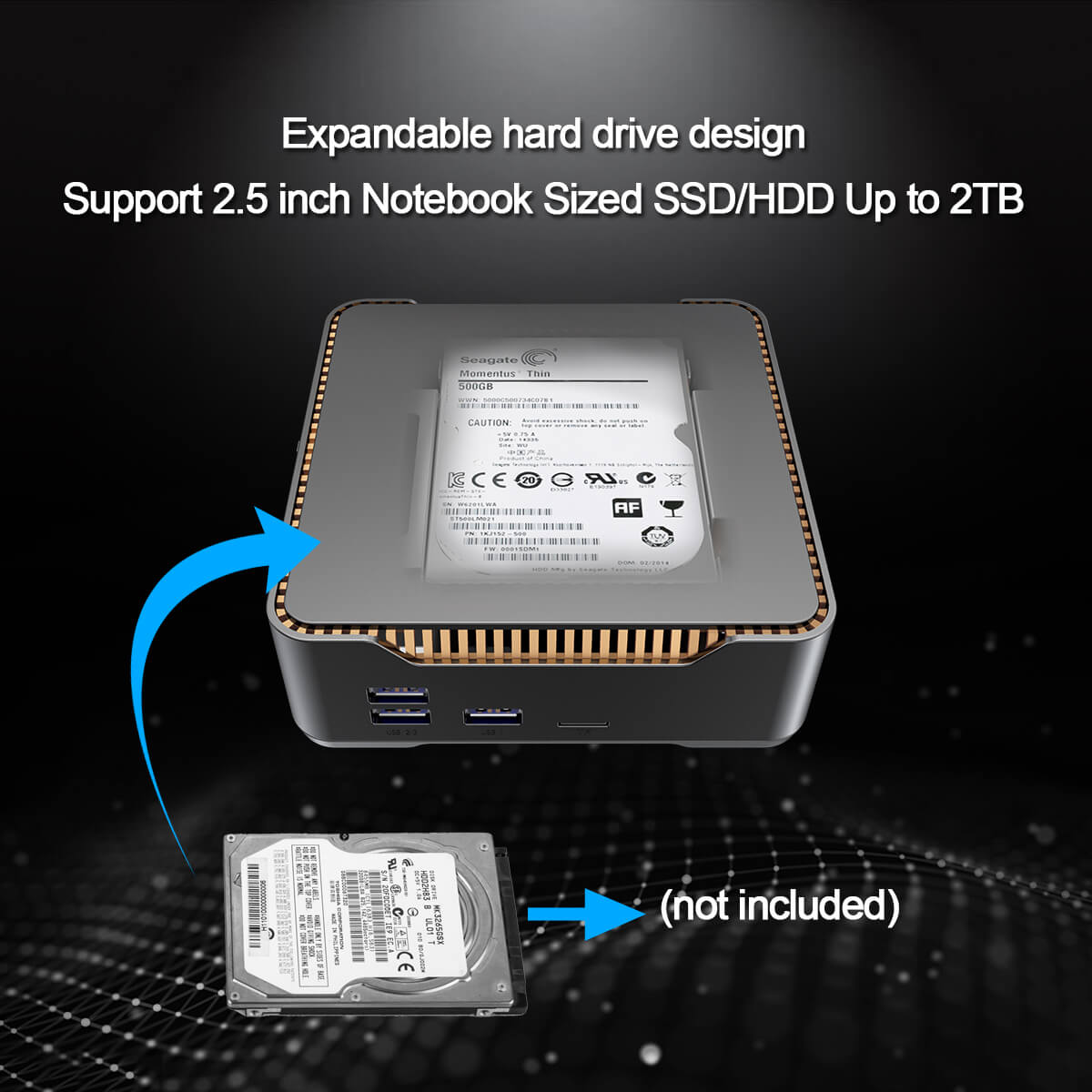

| SATA jack | support2.5〃HDD 500G/1T/2T(Power consumption<4W) |
| S/PDIF jack | S/PDIF OUT |
Software Configuration
| OS | Android 8.1 |
| VIDEO | Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders Support multi-video decoder up to 4Kx2K@60fps+1x1080P@60fps Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding Video/Picture Decoding - VP9 Profile-2 up to 4Kx2K@60fps - H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps - AVS2-P2 Profile up to 4Kx2K@60fps - H.264 AVC HP@L5.1 up to 4Kx2K@30fps - H.264 MVC up to 1080P@60fps - MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) - WMV/VC-1 SP/MP/AP up to 1080P@60fps - AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps - MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) - MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) - RealVideo 8/9/10 up to 1080P@60fps - Multiple language and multiple format sub-title video support - MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) - Supports JPEG thumbnail, scaling, rotation and transition effects - Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats Video/Picture Encoding Independent JPEG and H.265/H.264 encorder with configurable performance/bit-rate JPEG image encording H.265/H.264 video encording up to 1080P@60fps with latency |
| AUDIO | Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output built-in TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz x32bits x 8ch or 96kHz x 32bits x 32ch and I2S mode up to 384kHz x 32bits x 8ch Digital microphone PDM input with programmable CIC, LPF & HPF, support up to 8 DMICs Built-in stereo audio DAC Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM |
| Image | HD JPEG、BMP、GIF、PNG、TIF |
| Language | English French German Spanish Italian etc multilateral languages |
